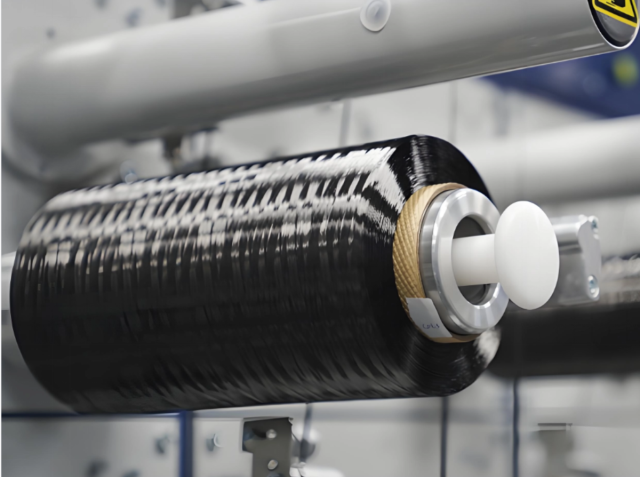

T1200 (SYT80) is a ultra-high-strength carbon fiber produced via proprietary dry-jet wet spinning technology. It represents world’s highest-performance industrialized carbon fiber to date, designed for mission-critical applications in aerospace, defense, and advanced engineering where extreme specific strength, dimensional stability, and reliability are paramount.
U3GEM™ T1200 (SYT80) is a China developed, ultra-high-strength carbon fiber produced via proprietary dry-jet wet spinning technology. It represents world’s highest-performance industrialized carbon fiber to date, designed for mission-critical applications in aerospace, defense, and advanced engineering where extreme specific strength, dimensional stability, and reliability are paramount.
|
Parameter |
Value / Range |
|
Grade |
T1200 (SYT80) |
|
Tensile Strength |
≥7566 MPa (typical); up to 8056 MPa (lab peak) |
|
Tensile Modulus |
~324 GPa |
|
Elongation at Break |
~2.3% |
|
Filament Diameter |
6–7 μm |
|
Linear Density (Tex) |
0.8–1.2 (for 12K) |
|
Density |
~1.80 g/cm³ |
|
Coefficient of Variation (CV) |
<5% (strength) |
|
Operating Temperature |
–180°C to +1000°C (inert atm) |
|
Region |
Standard(s) |
|
International |
ASTM D4018, ISO 10119, ISO 11566, EN 2558 |
|
China |
GB/T 3364-2023 (Test methods for carbon fiber) |
All batches include full test reports aligned with above standards.
Class 1: Raw Fiber (Tow)
Class 17: Semi-Finished Products
|
Item |
Detail |
|
Annual Capacity |
>100 metric tons |
|
Standard Lead Time |
6–10 weeks after order confirmation and export license approval |
|
MOQ |
50 kg (raw tow); 100 m² (fabric/prepreg) |
|
Transport Mode |
Packaging Specification |
|
Sea Freight |
Vacuum-sealed aluminum foil bag → desiccant → wooden crate (IPPC stamped) |
|
Air Freight |
UN-certified composite container with humidity indicator and shock log |
All packages labeled per IATA/IMDG and include batch ID for full traceability.
Export License Pre-Consultation
Application-Based Material Matching
Submit your:
Disclaimer: Mechanical data are typical values from controlled lab tests under standard conditions. Actual composite performance depends on design, processing, and resin system. Export of this material is subject to Chinese government dual-use export control regulations. U3GEM acts as an integrated supply coordinator; manufacturing is performed by certified Chinese advanced materials producer.
